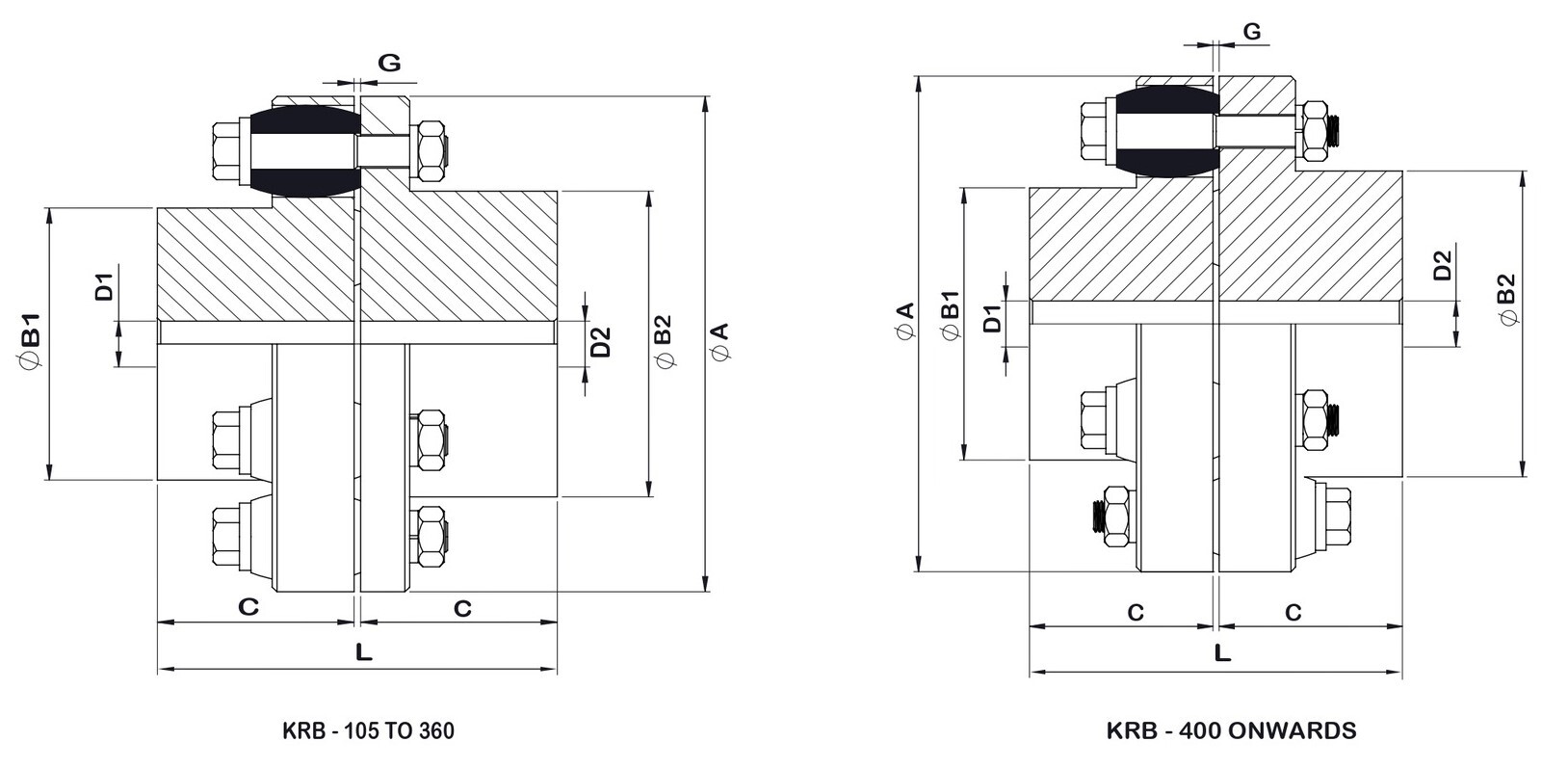

Dimensions & Technical Data

Size	Kw @ 100 Rpm	Rated Torque (Nm)	Max. Speed Rpm	Dimesions (mm)									Appx.Weight(Kg)
				Bore Range			A	B1	B2	C	G	L
				Min.	Max.
				Min.	D1	D2
105-3	1.0	95.6	7200	11	30	32	105		50	45	2-6	94	2.60
116-4	1.5	146.4	6100	12	39	42	116	60	68	45	2-6	94	3.55
125-4	1.7	165.5	5500	14	45	50	125	68	78	50	2-6	104	4.65
144-6	3.3	318.0	4900	18	50	60	144	82	91	55	2-6	114	7.00
162-6	5.5	525.0	4500	22	60	65	162	89	100	60	2-6	124	10.00
178-6	6.7	643.0	3800	24	70	75	178	105	115	70	2-6	144	13.50
198-10	13.0	1247.8	3400	28	80	90	198	124	135	80	2-6	164	20.00
228-11	21.4	2049.9	3000	28	90	100	228	133	146	90	4-10	187	28.00
252-12	32.0	3068.5	2700	38	105	115	252	156	167	100	4-10	207	40.00
285-11	47.6	4551.8	2400	48	115	125	285	170	186	110	4-10	227	52.50
320-12	63.8	6098.8	2100	55	125	135	320	196	212	125	4-10	257	72.50
360-11	93.0	8899.9	1900	65	135	150	360	212	232	140	4-12	288	106.15
400-10	126.0	12051.0	1700	75	160	160	400	230	230	160	4-12	328	128.00
450-12	194.8	18602.0	1500	85	180	180	450	260	260	180	4-12	368	192.00
500-14	270.0	25802.0	1350	95	200	200	500	290	290	200	4-12	408	261.00

For the higher sizes please contact us."
