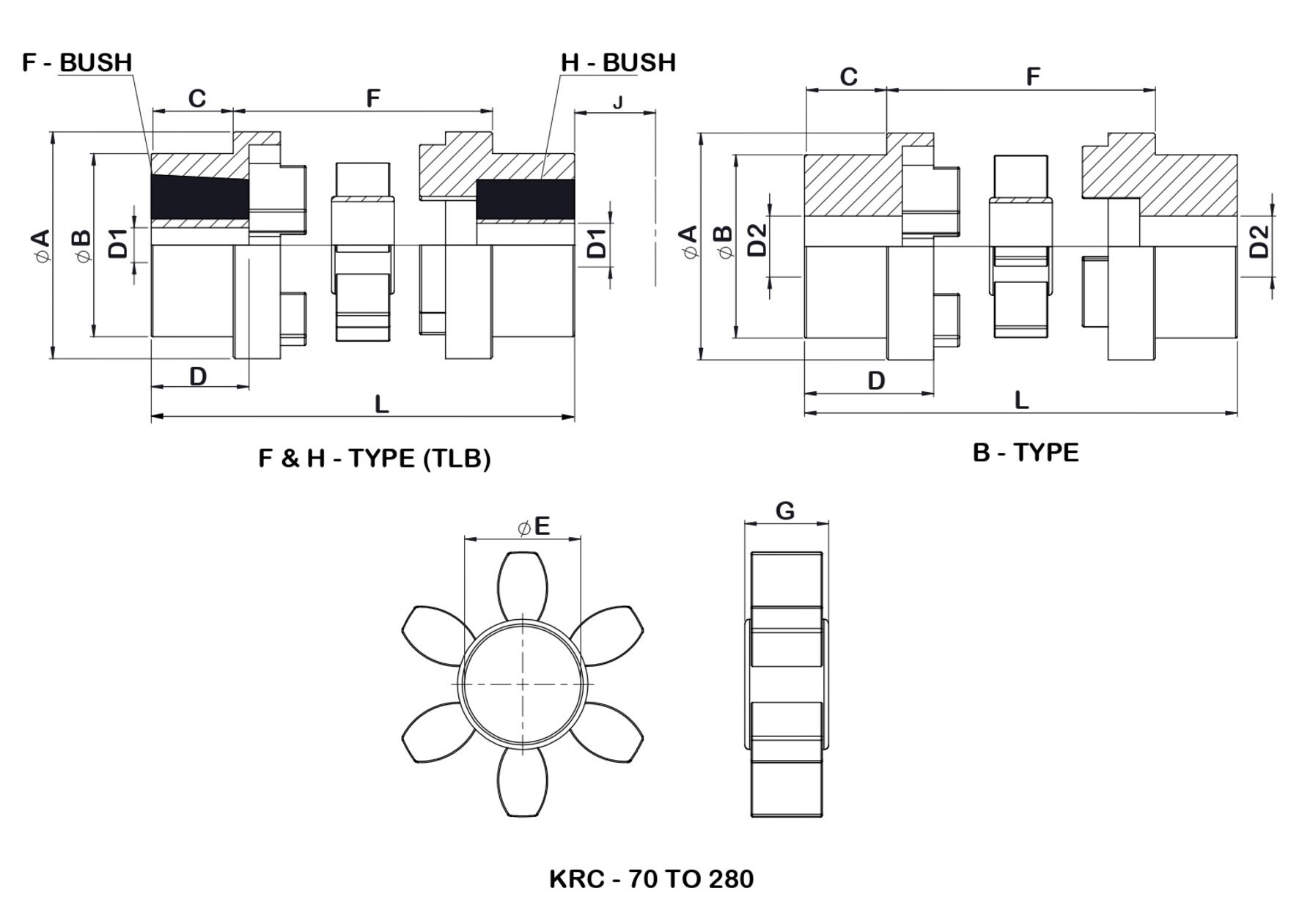

Dimensions & Technical Data

Size	Kw @ 100 Rpm	Rated Torque (Nm)	Dimensions (mm)																		Appx. Weight in (Kg)
			A	B	E	G	TLB Size	Type F & H							Type B
								Bore Range		C	D	F	L	J*	Bore Range		C	D	F	L
								Min.	Max (D1)	C	D	F	L	J*	Min.	Max. (D2)	C	D	F	L
70	0.33	31	69	60	31	18	1008	9	25	20	24	26	66	29	10	32	20	24	26	66	Please contact us
90	0.84	80	85	70	32	22	1108	9	28	19	24	31	70	29	10	35	26	30	30	82
110	1.68	160	112	100	45	29	1210	11	32	18	27	46	83	38	10	55	37	45	45	119
130	3.30	315	130	105	50	36	1610	14	42	18	27	54	90	38	14	60	47	56	54	148
150	6.28	600	150	115	62	40	2012	14	50	23	34	61	108	44	19	70	50	60	60	160
180	9.95	950	180	125	77	49	2517	16	60	34	47	74	143	48	35	80	58	70	73	189
230	20.90	2000	225	155	99	59	3020	25	75	39	53	86	165	55	38	100	77	90	85	239
280	33.00	3150	275	206	116	74	3525	35	90	51	67	106	208	67	48	115	90	105	104	284

J - Wrench clearance to allow for tightening and loosening the bush on the shaft.
