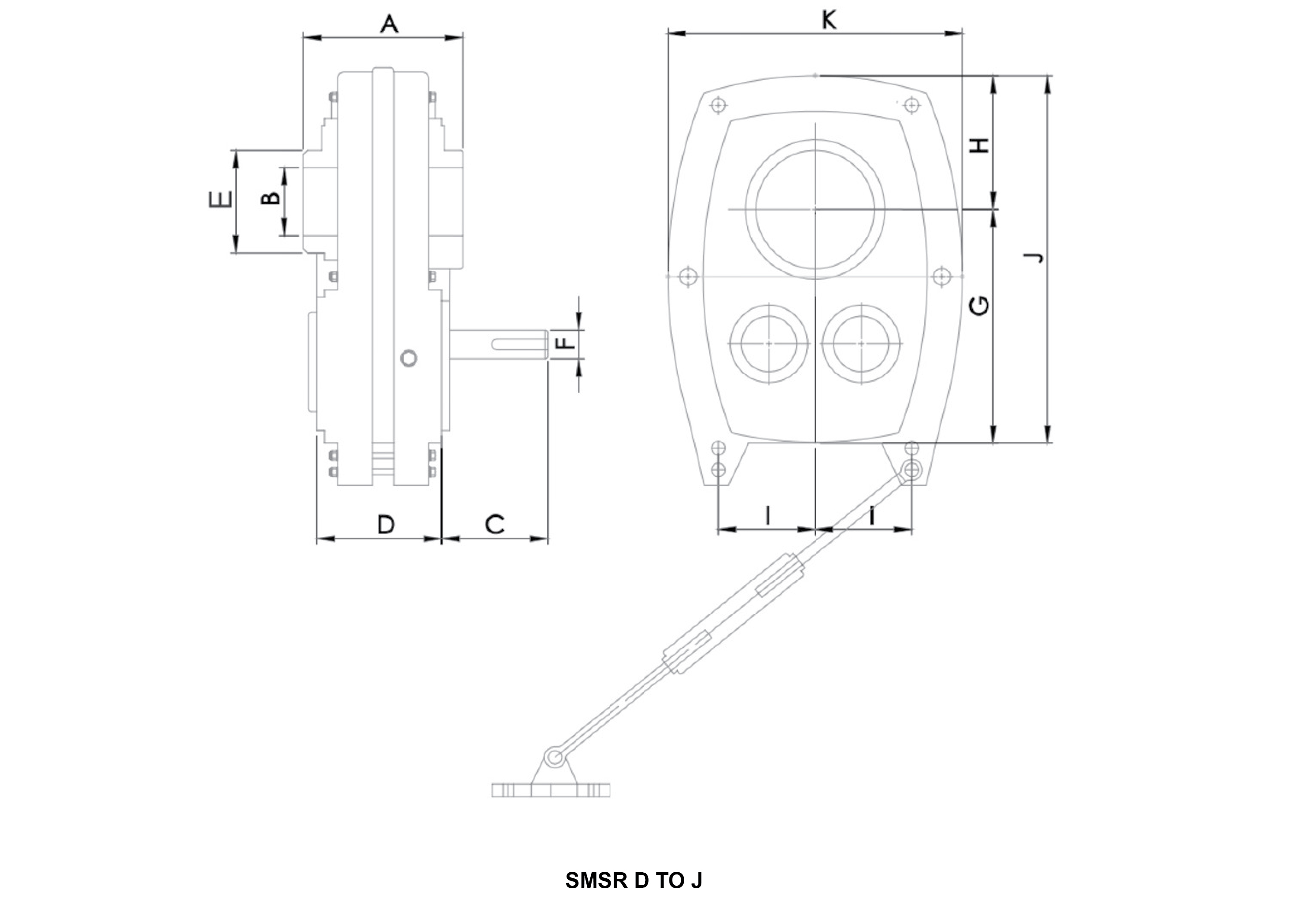

SMSR (D-J)
Dimensions & Technical Data
| Size | Dimensions (mm) | Approx. Weight (Kg ) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | Bore Range B | B Keyway | C | D | E | F | F Keyway | G | H | I | J | K | |||
| Std. | Alt. | ||||||||||||||
| D | 152 | 50 | 55 | 16X10X152 | 75 | 118 | 75 | 25 | 8 X 7X65 | 212 | 113 | 76 | 325 | 259 | 32 |
| E | 180 | 55 | 65 | 16X10X180 | 86 | 136 | 85 | 28 | 8 X 7X65 | 233 | 125 | 76 | 358 | 262 | 45 |
| F | 200 | 65 | 75 | 18X12X200 | 92 | 157 | 100 | 28 | 8 X 7X65 | 281 | 134 | 82 | 415 | 295 | 60 |
| G | 215 | 75 | 85 | 20X12X215 | 102 | 175 | 110 | 38 | 12 X 12X80 | 310 | 142 | 87 | 452 | 324 | 80 |
| H | 265 | 85 | 100 | 22X14X265 | 110 | 205 | 130 | 42 | 12X12X95 | 356 | 164 | 96 | 520 | 363 | 115 |
| J | 290 | 100 | 120 | 28X16X290 | 138 | 210 | 150 | 55 | 16X12X110 | 425 | 260 | 140 | 730 | 600 | 288 |
